Chilton DW-1 Front Centre Section Ply Scarfing

The 2mm for the rear and 3mm for the front of the Chilton front centre section spar were scarfed and glued.

Cleaning up the ply scarf edges with a small Veritas Apron Plane from my recent birthday

2mm ply scarf cut with the trim router

3mm ply scarf cut with the trim router

Chilton centre front spar ply scarfs ready for gluing

Ply scarfs coated with T-88 epoxy

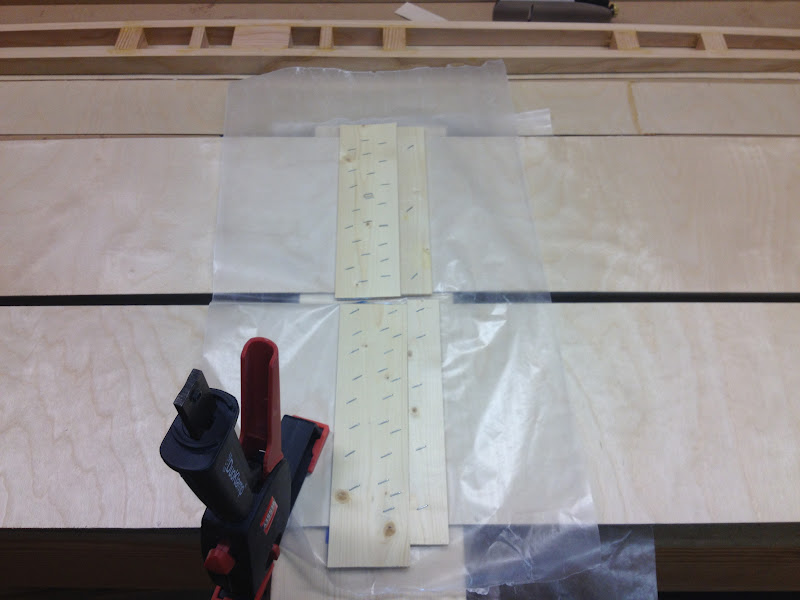

Ply scarfs glued with nailing strips

Chilton rear centre section spar ply edges were easily trimmed with the apron plane
